XyloZero Battery Safety

Battery Fire Early Detection

Detects precursor signals of thermal runaway in areas where the batteries of AGVs, AMRs and electrified prime movers are charged and stored.

The system consists of XyloZero sensor nodes, each with four built-in MEMS microphones, and a main control box.

XyloZero sensor nodes and a main control box installed in a battery charging area

Field challenges

Before thermal runaway, a lithium-ion battery can show subtle changes in sound and ultrasound, not just in temperature. Smoke and flame detectors respond only after ignition, so areas where many batteries charge together need a separate check for precursor signals.

How it works

XyloZero sensor nodes mounted near charging stations and battery racks capture sound around the batteries with their four built-in MEMS microphones and also measure temperature, humidity, VOC and other signals. Every node is wired to the main control box for power and data. The control box selects abnormal events at the edge, estimates their location from the sound direction and sends the results to the control system and on-site alarms.

Where it applies

  • AGVs
  • AMRs
  • Electrified prime movers
  • ESS
  • Battery swap and storage racks
  • Battery pack storage

System

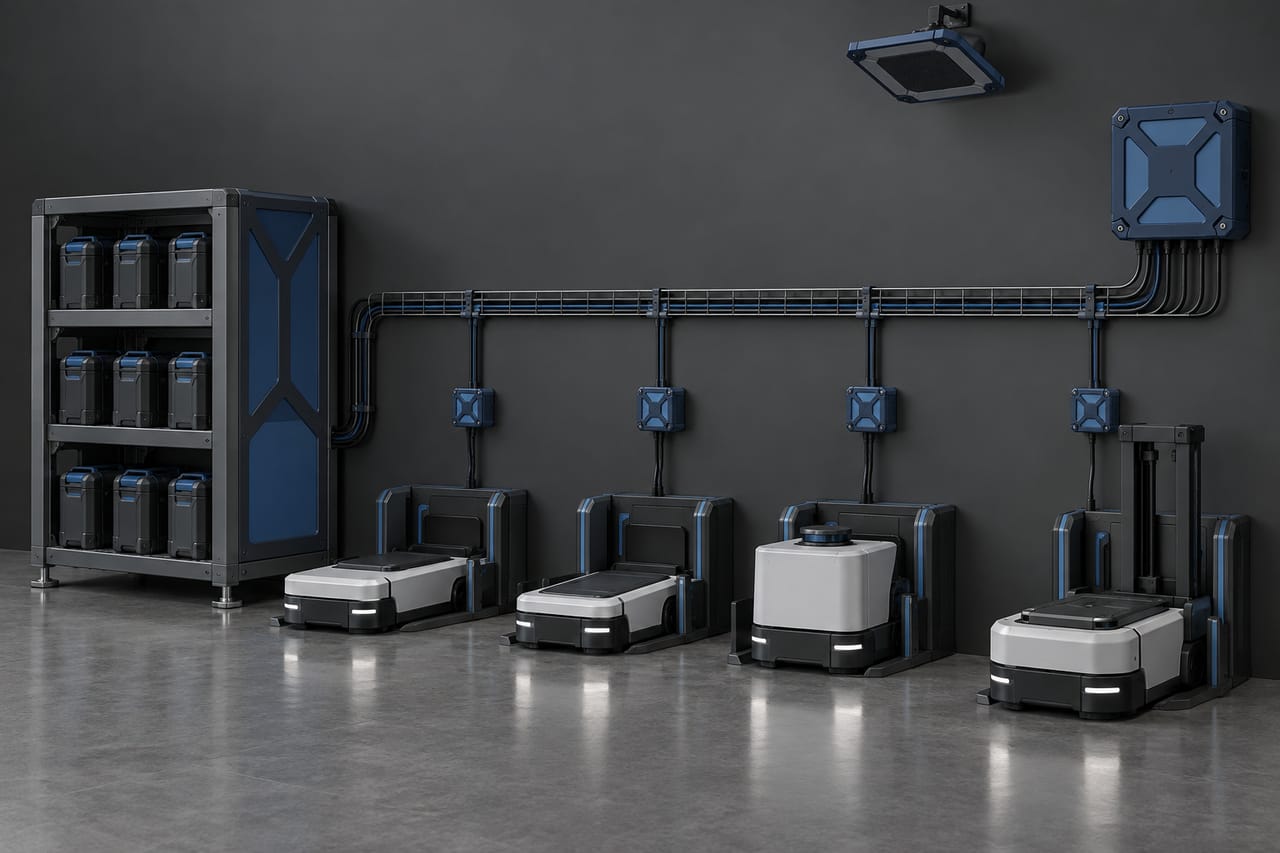

A XyloZero sensor node sits above each charging station and connects to the main control box along a cable tray.

Battery charging area with XyloZero sensor nodes above each station, cabled along a tray to the main control box
Components
  1. Main control box
  2. Wired link (cable tray)
  3. XyloZero sensor node
  4. Battery storage rack
  5. Charging AGV

01

XyloZero sensor node

Mounts near charging stations and battery racks. Four MEMS microphones and their signal-processing circuitry share one board.

  • Four MEMS microphones and environmental sensors
  • Magnetic or bolted mounting
  • Wired to the main control box

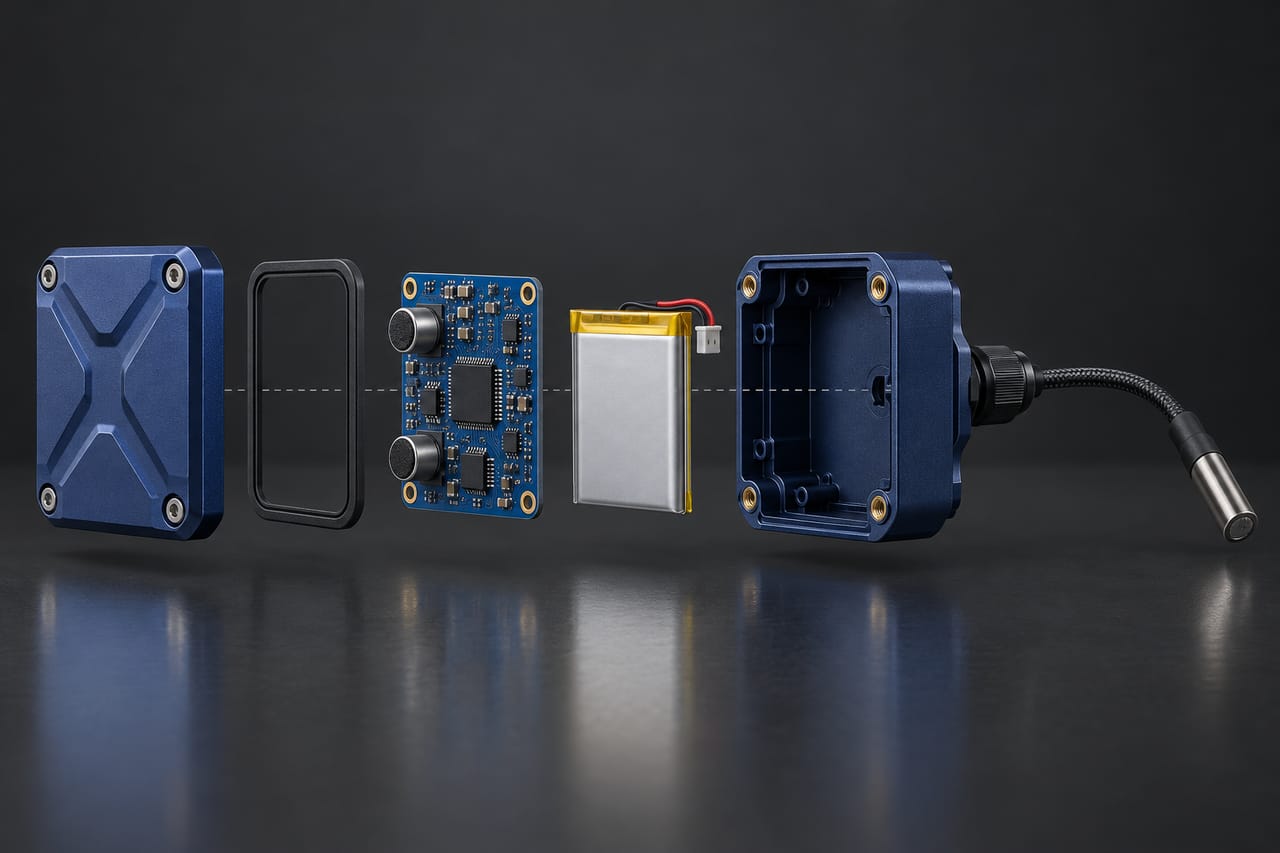

Exploded view of the wired XyloZero sensor node: top cover, sealing gasket, main board, housing and connecting cable
Components
  1. Top cover
  2. Sealing gasket
  3. Main board (mics and sensors)
  4. Housing
  5. Connecting cable

02

Main control box

Powers the wired XyloZero sensor nodes and collects their data. Its edge AI computer identifies precursor events and estimates where they occurred.

  • Edge AI detection and localization
  • Sensor power and data collection
  • Control system and on-site alarm outputs

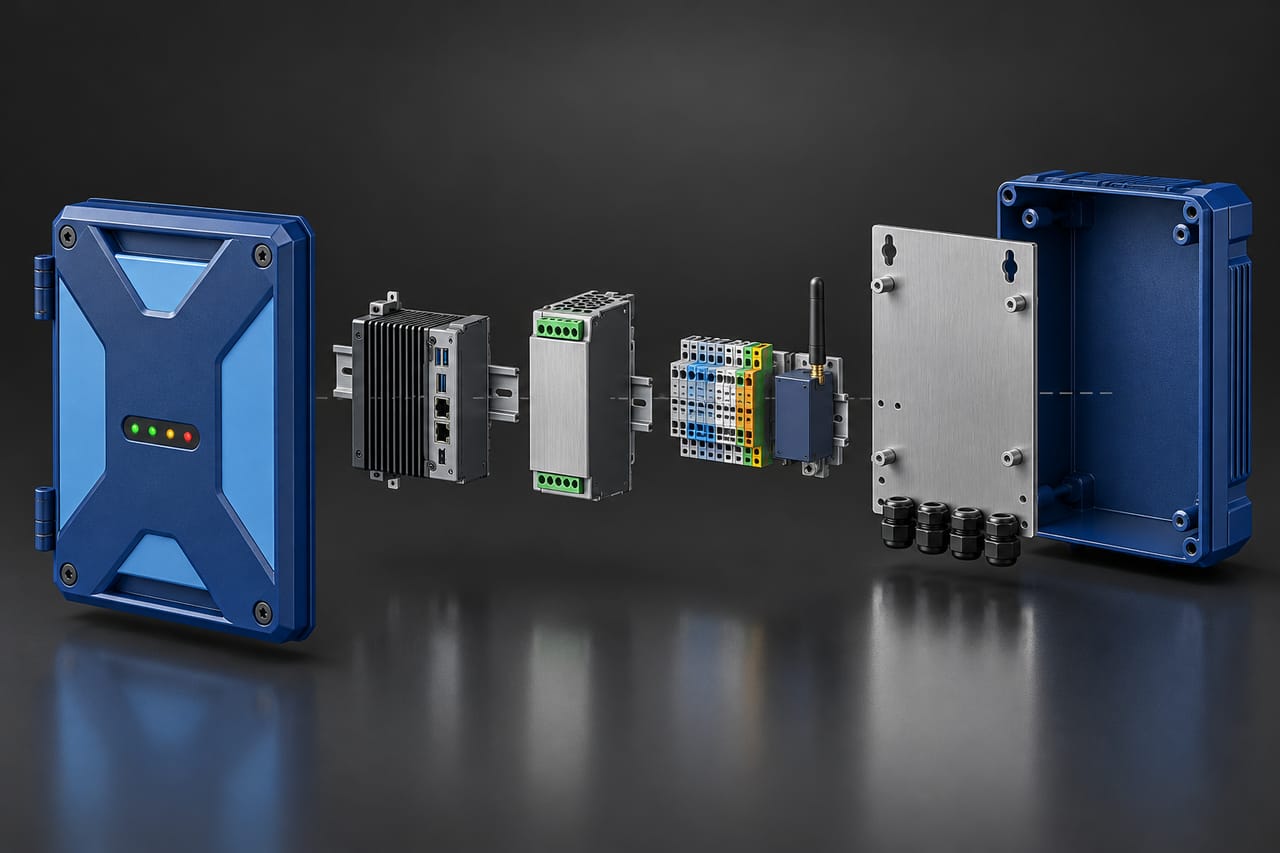

Exploded view of the main control box: front door with status lights, edge AI computer, power supply, terminal blocks and communication module, cable glands and enclosure
Components
  1. Status lights
  2. Edge AI computer
  3. Power supply
  4. Sensor terminal blocks
  5. Communication module
  6. Cable glands
  7. Enclosure

ESS example

The same XyloZero sensor nodes and main control box fit an ESS container lined with battery racks.

ESS container aisle with XyloZero sensor nodes on each battery rack and the main control box on the far wall
Components
  1. Cable tray
  2. Main control box
  3. XyloZero sensor node
  4. Battery rack

From detection to response

  1. Sense battery signals

    XyloZero sensor nodes continuously collect sound and other signals in the charging area.

  2. Select abnormal events

    The main control box separates precursor events from normal work sounds at the edge and estimates where they occurred.

  3. Alert the control room

    Event type, location and the raw signal go to the control-room screen and notifications.

  4. Respond on site

    On-site alarms and event records point the team to the station.

Capabilities

  • Continuous sound-event analysis around batteries
  • Edge selection of precursor events
  • Event location from XyloZero's four microphones
  • Wired power and data for continuous operation
  • Control system and on-site alarm integration

Deployment goals

  • Early warning at the precursor stage
  • Event location

Specifications

Values are for the custom specification.

XyloZero sensor node
Size80 × 100 mm
Weight150 g
Main unit (main control box)
Size250 × 350 mm

Frequently asked questions

Does it replace existing fire detection?
No. It complements existing detection by checking for signals before smoke or flame appear, so the control room and floor teams can respond sooner.
Where do you start?
We start with areas where batteries are concentrated, such as AGV, AMR and electrified prime mover charging areas and battery swap or storage racks. We review ESS sites and battery pack storage areas with the same setup.
How do I get a quote?
Tell us the size of the area, the number of charging stations and which existing control and alarm systems it should connect to. We will propose a configuration and quote.
